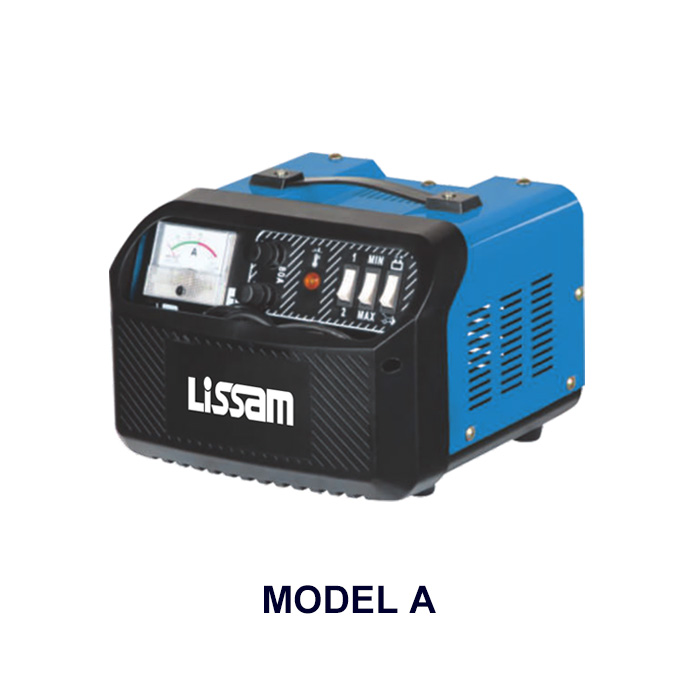

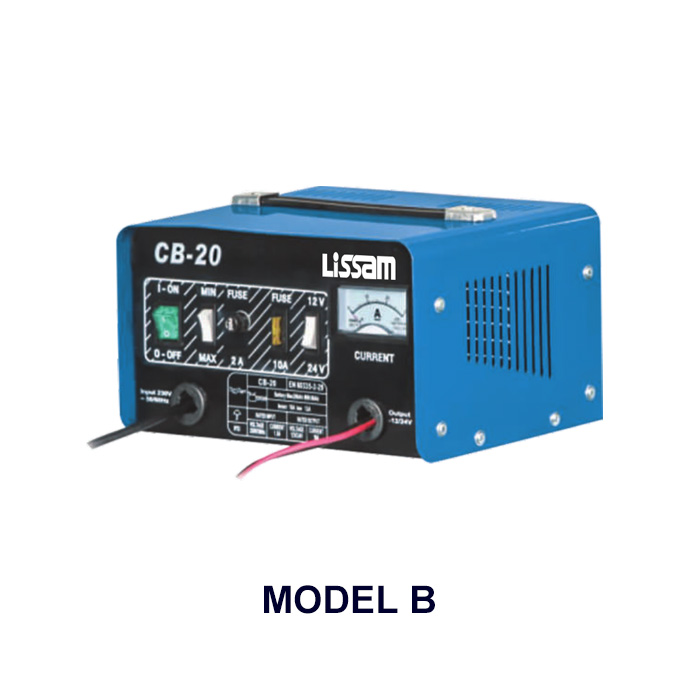

CB BATTERY CHARGER TRANSFORMER

DESCRIPTION:

● Single-phase Portable Battery Chargers For Charging Lead-acid Batteries With 12/24 voltage.

● Protected Against Overloads And Polarity Reversal

● Equipped With Selector For Normal Or Quick (Boost) charge

● Equipped With Ampmeter.

INCLUDED ACCESSORIES:

● Battery Clamp

● Cable

Model	CB-10	CB-15	CB-18	CB-20	CB-30	CB-40	CB-50
Rated Input Voltage (V)	230	230	230	230	230	230	230
Rated Capacity (w)	125	180	200	300	700	800	1000
Charging voltage (V)	12/24	12/24	12/24	12/24	12/24	12/24	12/24
Effiective Charging Current (A)	8/5	10/7	8/5	12/8	20	25	30
Rated charge Current (A)	5/3	7/5	8/5	12/8	20	25	30
Min/max. Reference Capacity (Ah)	20-90	20/110	20/120	20-200	20-250	20-300	20-350
Insulation Class	H	H	H	H	H	H	H
Weight (Kg)	5	5.2	7.2	7.4	9	10	11
