MIG-P Inverter

MIG-P Inverter

DESCRIPTION:

● Microprocessor controlled, MIG/MAG (continuous, pulse, double pulse, pulse on pulse), FLUX/BRAZING/TIG-DC lift and MMA inverter welding machine with built-in 4 rolls wire feeder.

● Flexibility of use with a wide range of materials such as steel, stainless steel, HSS high strength steels, galvanised sheets, aluminium and its alloys.

● The SYNERGIC function allows for a rapid and easy setting of the welding programmes and grants always a high control both of the arc and of the quality of the welding.

OPTIONAL:

● MMA Function

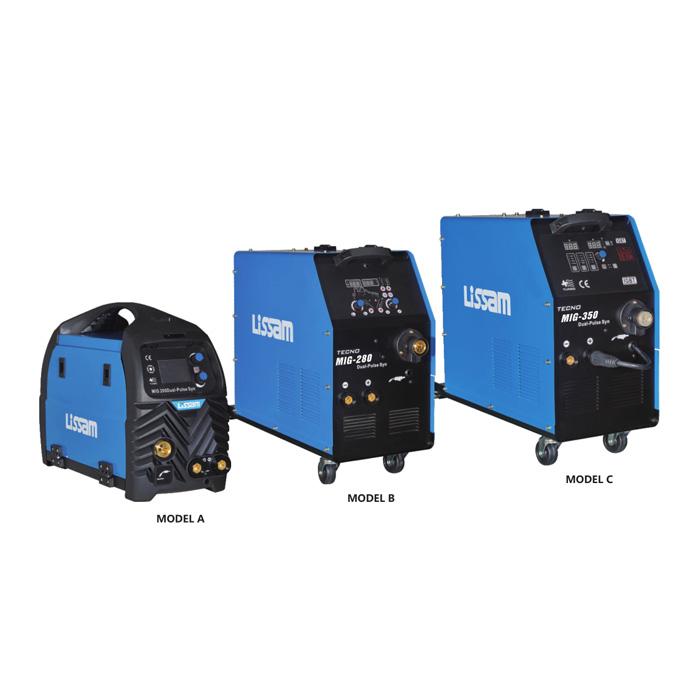

● MODEL A for MIG-160P MIG-200P, MIG-250P.

● MODEL B and MODEL C for MIG-280P MIG-350P.

0
Views: 1,069

Details

Model

MIG-160P

MIG-200P

MIG-250P

MIG-280P

MIG-350P

Rated Input Voltage (V)

230

230

230

400

400

No-load Voltage (V)

56

56

56

56

56

Current Range (A)

40-160

40-200

40-250

40-280

40-350

Fuse (A)

16

18

20

25

28

Duty Cycle (%)

60%

60%

60%

60%

60%

Max Spool Diameter(mm)

200

200

200

300

300

Max Wire Diameter (mm)

1.0

1.2

1.2

1.6

1.6

Weight (Kg)

12

13

15

25

30
