MIG-SYN Inverter

MIG-SYN Inverter

DESCRIPTION:

● Microprocessor controlled MIG/MAG/FLUX/BRAZING/MMA/TIG DC-Lift inverter multiprocess welding machine.

● It's flexibility of use and the different materials it can weld (steel, stainless steel,aluminium) or braze weld (galvanized sheet) allow for a wide range of applications.

● The quick SYNERGIC regulation of the welding parameters and the ONE TOUCH LCD SYNERGY technology make this product easy to use.

OPTIONAL:

● MMA Function

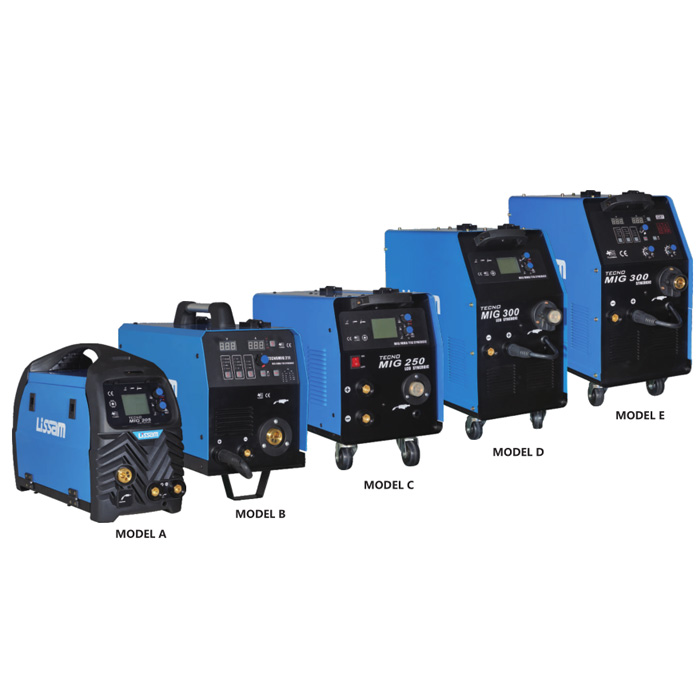

● MODEL A and MODEL B for MIG-160SYN, MIG-200SYN.

● MODEL C for MIG-230SYN, MIG-250SYN.

● MODEL D and MODEL E for MIG-300SYN.

0
Views: 2,354

Details

Model

MIG-160SYN

MIG-200SYN

MIG-230SYN

MIG-250SYN

MIG-300SYN

Rated Input Voltage (V)

230

230

230

230

400

No-load Voltage (V)

56

56

56

56

56

Current Range (A)

40-160

40-200

40-230

40-250

40-300

Fuse (A)

16

18

20

25

25

Duty Cycle (%)

60%

60%

60%

60%

60%

Max Spool Diameter(mm)

200

200

200

300

300

Max Wire Diameter (mm)

0.8

1.0

1.0

1.0

1.0

Weight (Kg)

12.5

13

15

18

30
