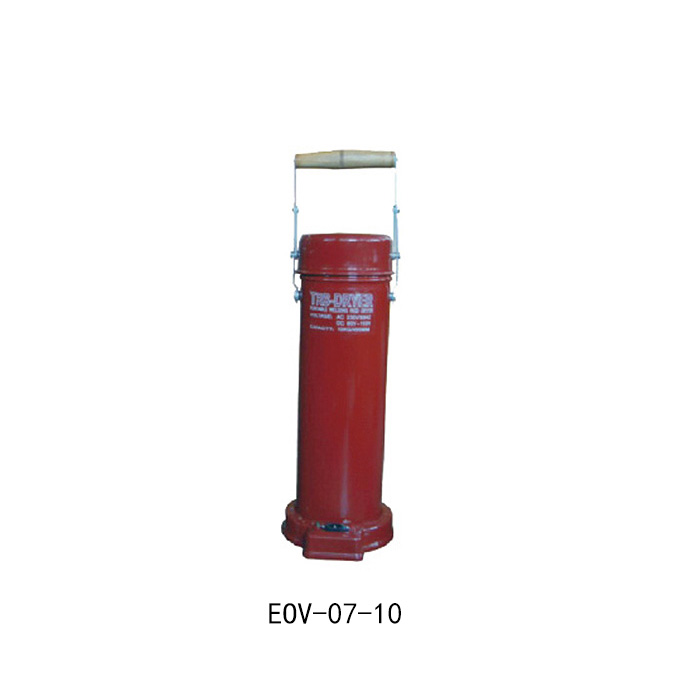

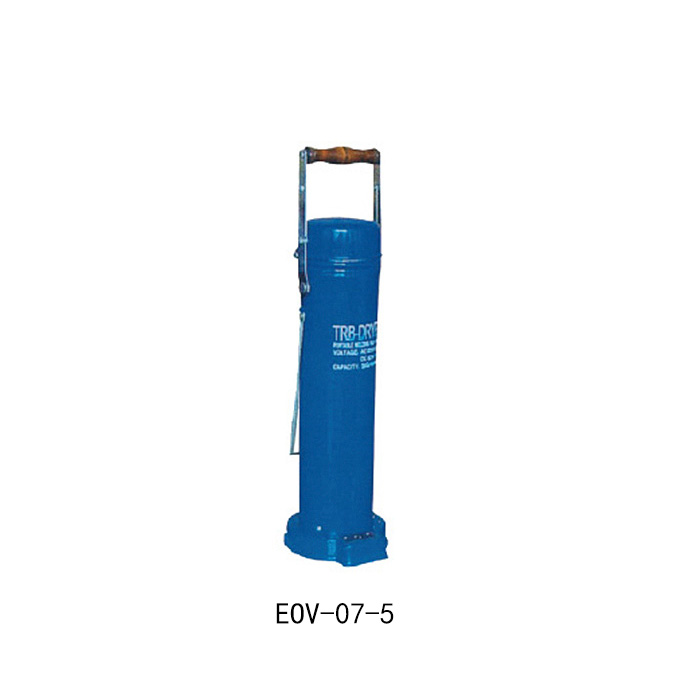

Mod.l No | EOV-06-5 | EOV-06-10 | EOV-07-5 | EOV-07-10 | EOV-08-5 | EOV-08-10 |
Electrodo Capacticy | 5KG | 10KG | 5KG | 10KO | 5KG | 10KG |
Input Voltage | AC 230V | AC220V/230V | AC/OC60-110V | |||
Power | 500W | 600w | 500W 50W-190W | 600W 80W-240W | 500W 50W-190W | 600W 80W-240W |
Max.Temperature | 50℃~200℃ | 150℃±15℃ | 150℃±15℃ | 150℃±15℃ | 150℃±15℃ | |
Electrode length | 450mm | 450mm | 450mm | 450mm | 450mm | 450mm |
Overall Size(L*W*H) | Φ196x635mm | Φ230x646mm | 168x188x635mm | 202x232x646mm | 168x188x610mm | 202x232x615mm |
Weight | 2.9KG | 5.1KG | 3.2KG | 4.3KG | 2.9KG | 4.2KG |
