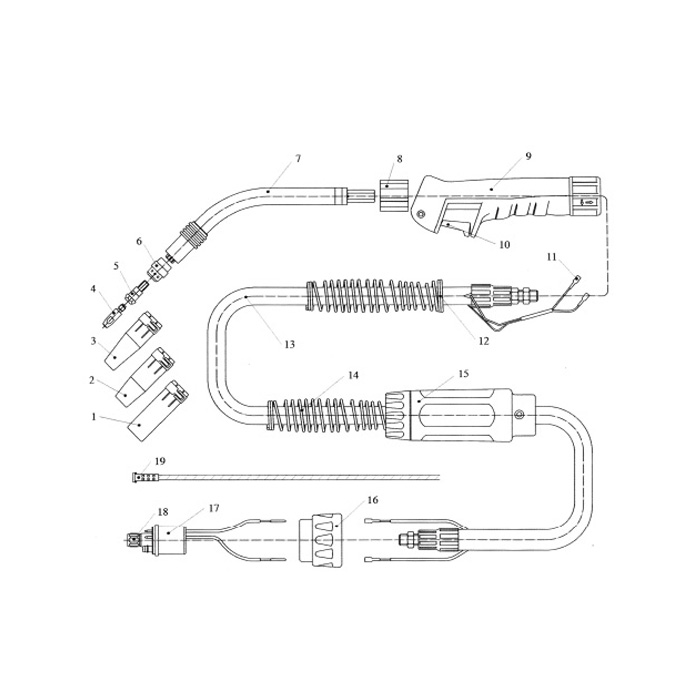

LBI 24

No.

Description

Part No.

LBI24 Complete Torch-3M

LS 012.0103

LBI 24 Complete Torch-4M

LS 012.0104

LBI 24 Complete Torch-5M

LS 012.0105

1

Cylindrical Nozzle Φ 17mm

LS 145.0047

2

Conical Nozzle Φ 12.5mm

LS 145.0080

3

Tapered Nozzle Φ10mm

LS 145.0128

4

M6 X 28 X 0.8 Contact Tip,E-Cu

LS 140.0051

M6 X 28 X 0.9 Contact Tip,E-Cu

LS 140.0169

M6 X 28 X 1.0 Contact Tip,E-Cu

LS 140.0242

M6 X 28 X 1.2 Contact Tip,E-Cu

LS 140.0379

M6 X 28 X 0.8 Contact Tip,E-Cu for Al.

LS 141.0001

M6 X 28 X 1.0 Contact Tip,E-Cu for Al.

LS 141.0006

M6 X 28 X 1.2 Contact Tip,E-Cu for Al.

LS 141.0010

M6 X 28 X 0.8 Contact Tip, CuCrZr

LS 141.0054

M6 X 28 X 1.0 Contact Tip, CuCrZr

LS 140.0245

M6 X 28 X 1.2 Contact Tip, CuCrZr

LS 140.0382

5

Contact Tip Holder

LS 142.0003

6

Gas Diffuser Standard

LS 012.0183

Swan Neck

Plastic Nut

9

Handle

LS 180.0076

10

Switch

LS185.0031

11

Switch Connector Collet

LS 175.A022

12

Cable Support

LS 400.1010

13

Cable Assembly (25mm²),3M

Cable Assembly (25mm²),4M

Cable Assembly (25mm²),5M

14

Cable Support

LS 400.1010

15

Rear Handle

LS 501.2248

16

Adaptor Nut

LS 500.0213

17

Central Connector KZ-2

LS 501.0003

18

Nut M10×1

LS 501.0082

19

Insulated Liner, For wire p0.6-0.8,3.5M

LS 124.0011

4.5M

LS 124.0012

5.5M

LS 124.0015

Insulated Liner, For wire Φ1.0-1.2,3.5M

LS 124.0026

4.5M

LS 124.0031

5.5M

LS 124.0035

Teflon Liner, For wire Φ0.6-0.8,3.5M

LS 126.0005

4.5M

LS 126.0008

5.5M

LS 126.0011

Teflon Liner, For wire Φ1.0-1.2,3.5M

LS 126.0021

4.5M

LS 126.0026

5.5M

LS 126.0028
