LBI 40

LBI 40

Technical Data



Rating:  380A CO2
             360A Mixed Gases
Duty Cycle:  60%
Wire size: 1.0-1.6mm

0
Views: 1,020

Details

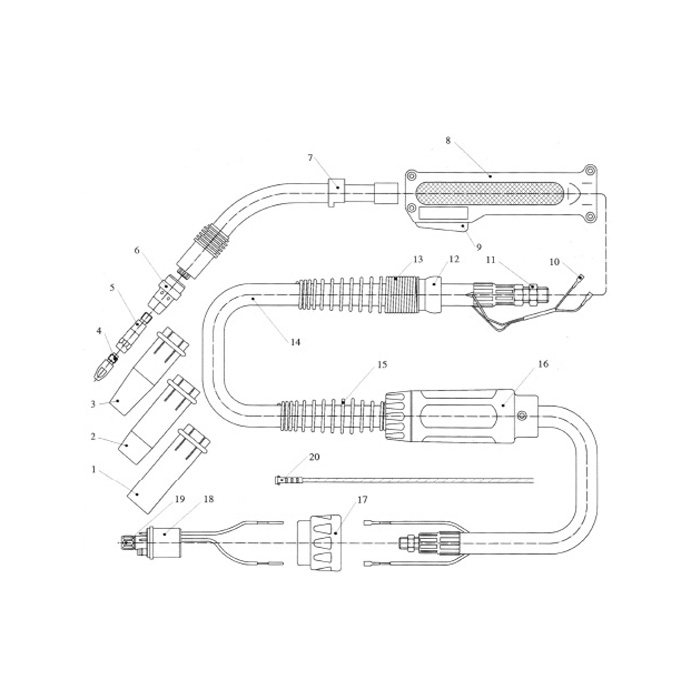

No.

Description

Part No.



LBI 40 Complete Torch-3M

LS 015.0029



LBI 40 Complete Torch-4M

LS 015.0032



LBI 40 Complete Torch-5M

LS 015.0034

1

Cylindrical Nozzle Φ 21mm

LS 145.0046

2

Conical Nozzle Φ 18mm

LS 145.0079

3

Tapered Nozzle Φ 14mm

LS 145.0127

4

M6 × 28 × 0.8 Contact Tip,E-Cu

LS 140.0051



M6 × 28 × 0.9 Contact Tip,E-Cu

LS 140.0169



M6 × 28 × 1.0 Contact Tip,E-Cu

LS 140.0242



M6 × 28 × 1.2 Contact Tip,E-Cu

LS 140.0379


M6 × 28 × 1.6 Contact Tip,E-Cu

LS 140.0555



M6 × 28 × 0.8 Contact Tip,E-Cu for Al.

LS 141.0001



M6 × 28 × 1.0 Contact Tip,E-Cu for Al.

LS 141.0006



M6 × 28 × 1.2 Contact Tip,E-Cu for Al.

LS 141.0010



M6 × 28 × 0.8 Contact Tip, CuCrZr

LS 140.0054



M6 × 28 × 1.0 Contact Tip, CuCrZr

LS 140.0245




LS
5

M8 × 30 × 0.8 Contact Tip,E-Cu

LS 140.0114


M8 × 30 × 1.0 Contact Tip,E-Cu

 LS 140.0313


M8 × 30 × 1.2 Contact Tip,E-Cu

 LS 140.0442


M8 × 30 ×0.8 Contact Tip,E-Cu for Al.

 LS 141.0003


M8 × 30 × 1.0 Contact Tip,E-Cu for Al.

 LS 141.0008


M8 × 30 × 1.2 Contact Tip,E-Cu for Al.

 LS 141.0015


M8 × 30 × 0.8 Contact Tip, CuCrZr

 LS 141.0117


M8 × 30 × 1.0 Contact Tip, CuCrZr

 LS 140.0316


M8 × 30 × 1.2 Contact Tip, CuCrZr

 LS 140.0445


M8 × 30 × 1.2 Contact Tip, CuCrZr

 LS 140.0590


M8 × 30 × 1.2 Contact Tip, CuCrZr

 LS 140.0679
6

Gas Diffuser Standard

 LS 030.0145


Long life

 LS 030.0037


Ceramic

 LS 030.0190
7

Contact Tip Holder M6 X25

 LS 142.0008


 M6 X29

 LS 142.0013
8

Contact Tip Holder M8 X25

 LS 142.0022


M8 X29

 LS 142.0027
9

Insulator

 LS 030.0019
10

Swan Neck

 LS 034.0001

11

Handle

——

12

Switch

LS 185.0031

13

Switch Connector Collet

LS 175.0022

14

Ball Joint Cable Support

——

15

Cable Assembly (16mm²),3M





Cable Assembly (16mm²),4M

LS 500.0225



Cable Assembly (16mm²),5M

LS 501.2248

16

Back Cable Support Spring



17

Rear Handle

LS 501.2379

18

Adaptor Nut

LS 500.0213

19

Central Connector KZ-2

LS 501.0015

20

Nut M10×1

LS 501.0082

21

Steel Liner, For wire Φ0.8,3.5M

LS 124.0005



4.5M

LS 124.0007



5.5M

LS 124.0009



Steel Liner, For wire Φ 1.0-1.2,3.5M

LS 122.0031



4.5M

LS 122.0036



5.5M

LS 120.3939



Steel Liner, For wire Φ 1.6,3.5M

LS 122.0056



4.5M

LS 122.0060



5.5M

LS 122.0063
