LBI 501D

LBI 501D

Technical Data



Rating:  500A CO2
             450A Mixed Gases
Duty Cycle:  60%
Wire size:  1.0-1.6mm

0
Views: 1,049

Details

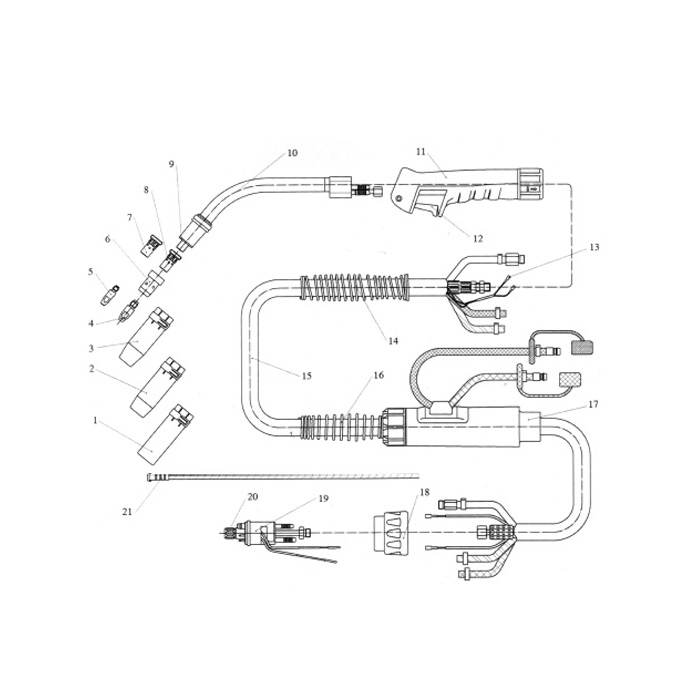

No.

Description

Part No.



LOX 235 Complete Torch-3M

LOX235



LOX 235 Complete Torch-4M

LOX235



LOX 235 Complete Torch-5M

LOX235

1

Gas Nozzle Φ 15mm(35mm)

ME 514



Gas Nozzle Φ 15mm(35mm)

ME 522

2

Gas Nozzle Φ 13mm(65mm)

ME 517



Gas Nozzle Φ 16mm(65mm)

ME 516

3

Gas Nozzle Φ 19mm(65mm)

ME 512


Contact Tip,W5/16" x 55 x 0.8

MA 050


Contact Tip,W5/16" x 55 x 0.8

MA 051


Contact Tip,W5/16" x 55 x 0.8

MA 052
4

Contact Tip,W5/16" x 55 x 0.8

MA 053



Contact Tip,M8 x 30 x 0.8

MA 060



Contact Tip,M8 x 30 x 0.9

MA 061



Contact Tip,M8 x 30 x 1.0

MA 062



Contact Tip,M8 x 30 x 1.2

MA 063

5

Gas Nozzle Supporter

MD 490

6

Gas Nozzle Holder

MB 405

7

Gas Nozzle Holder

MB 406

8



MC 443

9

Swan Neck

LS574
10

Swan Neck Cover

LS446
11

Plastic Nut

LS622

12

Handle

LS180.0076

13

Switch

LS 185.0031

14

Switch Connector Collet

LS 175.A022

15

Cable Support

LS400.1010

16

Cable Assembly (35mm²),3M

——



Cable Assembly (35mm²),4M

MM727



Cable Assembly (35mm²),5M

MM728

17

Cable Support

LS400.1010

18

Rear Handle

LS 501.2248

19

Adaptor Nut

MP 761

20

Central Connector KZ-2

MP 770

21

Nut M10×1

MP 762



Insulated liner,0.8-1.0mm,3m

MP 800



Insulated liner,0.8-1.0mm,4m

MP 801



Insulated liner,0.8-1.0mm,5m

MP 802



Insulated liner,1.2mm,3m

MP 803



Insulated liner.1.2mm,4m

MP 804



Insulated liner.1.2mm,5m

MP 805
