12 Series

12 Series

Technical Data

Rating: 500A DC
Duty Cycle: 100%
Tungsten Rod: 1.6~6.4mm

0

Views: 1,171

Details

No.	Description	Part No.
	WP-12Torch	WP-12(4M)
	WP-12 Torch	WP-12(8M)
1	Torch Body	WP-12
2	Long Back Cap	56Y44
3	Short Back Cap	56Y45
4	Gasket	12NG
5	Collet	85Z14.1.6mm
		85Z15.2.4mm
		85Z16.3.2mm
		85Z17.4.0mm
		85Z18.4.8mm
		85Z19.6.4mm
6	Large Dia. Gas Lens Collet	11WP65.All size
7	Ceramic Nozzle	14N57,6mm
		14N58.8mm
		14N59,10mm
		14N60.11mm
		14N61,,13mm
		14N61-10.16mm
		14N61-12.19mm
8	Extra Dia. Ceramic Nozzle	57N75.10mm
		57N74.13mm
		53N88,16mm
		53N87.19mm
9	Switch(with wire)
10	Handle	85WP13
11	Cable Assembly
12	Cable Assembly Cover

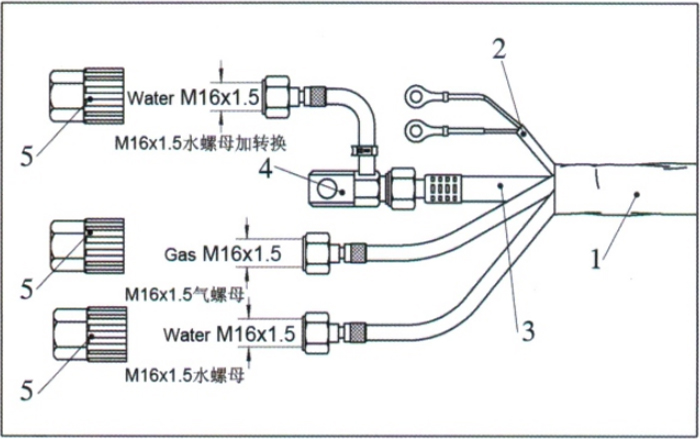

WP-12 Torch Terminations

NO.	Description
1	Cable Assembly Cover, For 4M(12.5 feet), Rubber/Jean
	Cable Assembly Cover, For 8M(25 feet), Rubber/Jean
2	Control Wire
3	Cable 12mm²,4M(12.5 feet)
	Cable 12mm²,8M(25 feet)
4	Cable Adapter
5	Nut Cup(SW19)

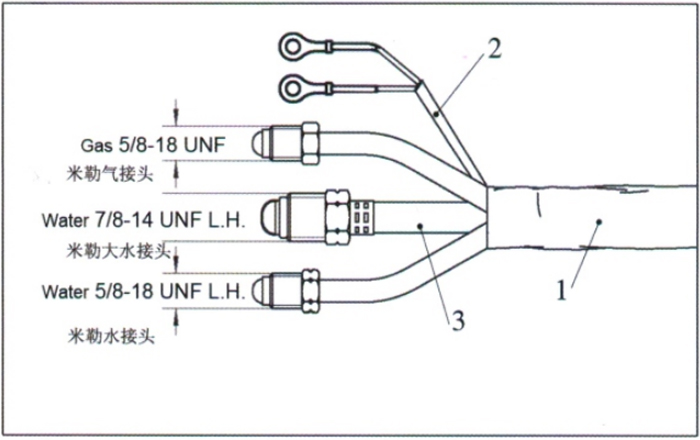

NO.	Description
1	Cable Assembly Cover, For 4M(12.5 feet), Rubber/Jean
	Cable Assembly Cover, For 8M(25 feet), Rubber/Jean
2	Control Wire
3	Cable 12mm²,4M(12.5 feet)
	Cable 12mm²,8M(25 feet)
