Details
| No. | Description | Part No. |
| 1 | WP-20 Torch | WP-20(4M) |
| 1a | WP-20 Torch | WP-20(8M) |
| 1b | Torch Body | WP-20 |
| 2 | Torch Body (Flexible) | WP-20F |
| 3 | Torch Body(Pencil) | WP-20P |
| 4 | Long Back Cap | 41V24 |
| 5 | Medium Back Cap S | 41V35 |
| 6 | hort Back Cap | 41V33 |
| 7 | Gaske | 598882 |
| t Large Dia. Gas Lens Insulator | 54N63-20 | |
| Collet | 13N20.0.5mm | |
| 13N21,1.0mm | ||
| 13N22,1.6mm | ||
| 13N22M.2.0mm | ||
| 13N23,2.4mm | ||
| 13N24,3.2mm | ||
| 8 | Large Dia.Gas Lens Collet | 13N20L,0.5mm |
| 13N21L,1.0mm | ||
| 13N22L,1.6mm | ||
| 13N23L,2.4mm | ||
| 13N24L,3.2mm | ||
| 9 | Collet Body | 13N25,0.5mm |
| 13N26,1.0mm | ||
| 13N27.1.6mm | ||
| 13N27M.2.0mm | ||
| 13N28.2.4mm | ||
| 13N29,3.2mm | ||
| 10 | Small Gas Lens | 45V41,0.5mm |
| 45V42,1.0mm | ||
| 45V43,1.6mm | ||
| 45V43M.2.0mm | ||
| 45V44.2.4mm | ||
| 45V45,3.2mm | ||
| 11 | Large Stubby Gas Lens | 45V0204S,0.5/1.0mm |
| 45V116S,1.6mm | ||
| 45V64SS,2.4mm | ||
| 995795S,3.2mm | ||
| 13N08.6mm | ||
| 13N09,8mm | ||
| 13N10,10mm | ||
| 13N11.11mm | ||
| 13N12,13mm | ||
| 12 | Ceramic Nozzle | 13N13,16mm |
| 3NO9.8mm | ||
| 13N10,10mm | ||
| 13N11.11mm | ||
| 13N12,13mm | ||
| 13N13,16mm | ||
| 13 | Long Ceramic Nozzle | 796F70.5mm |
| 796F71,6mm | ||
| 796F72,8mm | ||
| 796F73,10mm | ||
| 14 | Extra Long Ceramic Nozzle | 796F74,5mm |
| 796F75.6mm | ||
| 796F76,8mm | ||
| 796F77,10mm | ||
| 53N58.6mm | ||
| 15 | Ceramic Nozzle | 53N59,8mm |
| 53N60,10mm | ||
| 53N61.11mm | ||
| 53N61S,13mm | ||
| 16 | Extra Dia.Ceramic Nozzle | 57N75,10mm |
| 57N74.13mm | ||
| 53N88,16mm | ||
| 53N87.19mm | ||
| 17 | Switch(with wire) | |
| 18 | Handle | 105Z55 |
| 19 | Cable Assembly | |
| 20 | Cable Assembly Cover |

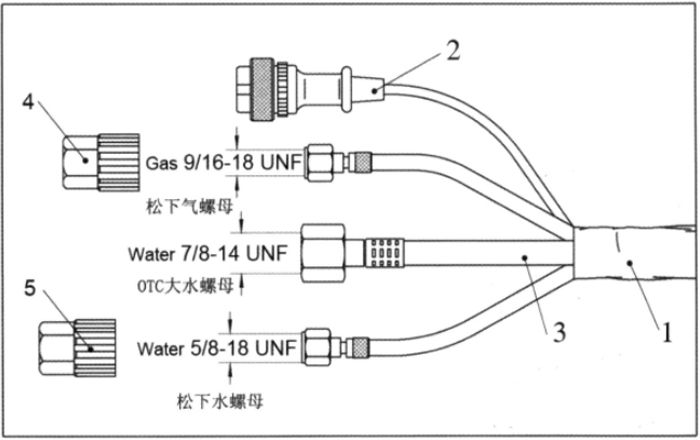

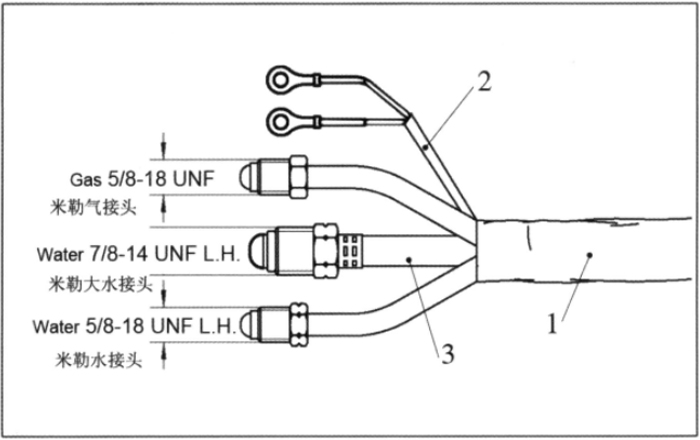

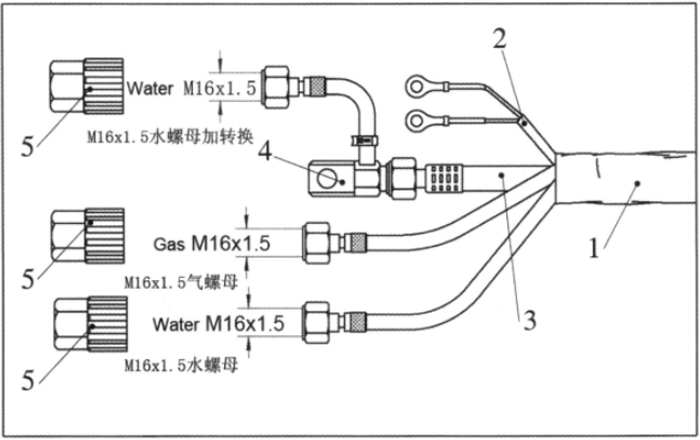

WP-20,WP-20F,WP-20P Torch Terminations
| NO. | Description |
| 1 | Cable Assembly Cover, For 4M(12.5 feet), Rubber/Jean |
| Cable Assembly Cover, For 8M(25 feet), Rubber/Jean | |
| 2 | Control Wire |
| 3 | Cable 4mm²,4M(12.5 feet) |
| Cable 4mm²,8M(25 feet) | |
| 4 | Cable Adapter |
| 5 | Nut Cup(SW19) |
| NO. | Description |
| 1 | Cable Assembly Cover, For 4M(12.5 feet), Rubber/Jean |
| Cable Assembly Cover, For 8M(25 feet), Rubber/Jean | |
| 2 | Control Wire |
| 3 | Cable 4mm²,4M(12.5 feet) |
| Cable 4mm²,8M(25 feet) |
| NO. | Description |
| 1 | Cable Assembly Cover, For 4M(12.5 feet), Leather/Jean |
| Cable Assembly Cover, For 8M(25 feet), Leather/Jean | |
| 2 | Plug 2-Pin,Panasonic |
| 3 | Cable 4mm²,4M(12.5 feet) |
| Cable 4mm²,8M(25 feet) | |
| 4 | Nut Cup(SW17) |
| 5 | Nut Cup(SW19) |
-
